| Business Type | Manufacturer, Supplier |
| Color | Grey |
| Automatic Grade | Automatic |
| Voltage | 220V |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details

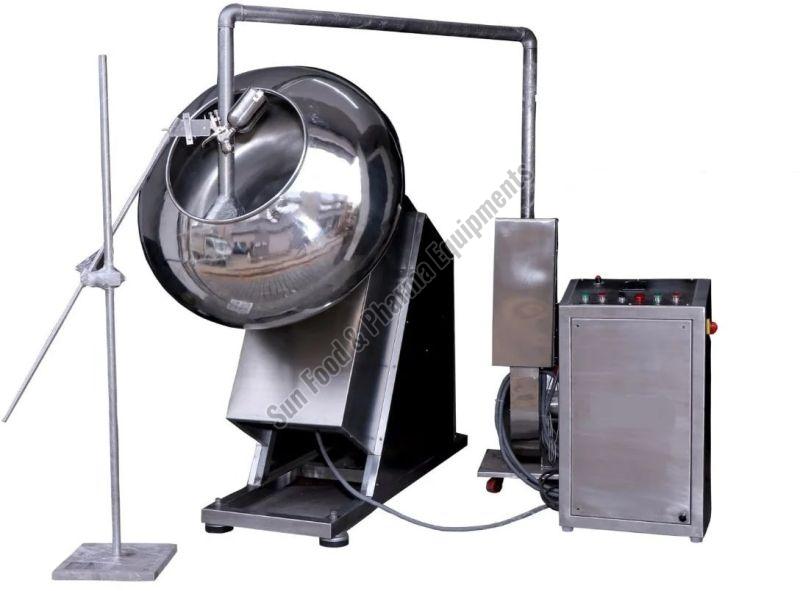

Use – Coating Machine Are Used To Sugar Coat Tablets, Pills. A Variety Of Industries Such As Pharmaceutical, Confectionery, Food And Others. Rolling And Heating Beans And Edible Nuts Or Seeds.
Application – Coating or flavoring
Process – The Product Is To Be Filled Inside The Pan. During The Rotation Motion, Coating Material Is Sprayed By Spraying System According To The Technological Process & Rational Technological Process. So Process Materials (Product) Are Coated Due To Rotating Pan. The Coating Round Pot Is Rotated By Variable Speed. At The Same Time Hot Air Is Supplied Through Inbuilt Hot Air Blower System Which Dries Rapidly (Heating Or Cooling) And Evenly Thus Forming A Solid & Smooth Surface.
Material Of Construction –
- GMP. Model (Full Stainless Steel),
- STD. Model (Product Contact Parts Stainless Steel & Non Contact Parts Mild Steel Painted)
- M.S.Model ( Fully Mild Steel) (As per Customer Required)
Specifications
| MODEL | SFFE- 12 | SFFE- 24 | SFFE- 30 | SFFE- 36 | SFFE- 42 | SFFE- 48 | SFFE- 60 | SFFE- 72 |
| PAN SIZE | 12 INCH | 24 INCH | 30 INCH | 36 INCH | 42 INCH | 48 INCH | 60 INCH | 72 INCH |
| LOADING CAPACITY IN KG. | 5 TO 8 | 10 TO 15 | 40 TO 45 | 60 TO 80 | 90 TO 100 | 110 TO 120 | 150 TO 210 | 210 TO 250 |
| PAN ANGLE | ﮿30 | ﮿30 | ﮿30 | ﮿30 | ﮿30 | ﮿30 | ﮿30 | ﮿30 |
| PAN RPM | 60 | 40 | 36 | 36 | 36 | 36 | 20 | 20 |
| PAN MOTOR HP | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 5 | 5 |
| BLOWER CAPACITY CFM | 100 | 100 | 150 | 150 | 150 | 150 | 300 | 300 |
| HEATER CAPACITY IN KW. | 2 | 3 | 3 | 3 | 5 | 5 | 6 | 6 |
