Pharmaceutical Equipment

The Plough Shear Mixer is a state-of-the-art mixing machine designed to handle both dry and wet materials with precision and efficiency. Widely used in industries such as pharmaceuticals, chemicals, cosmetics, ceramics, dyestuffs, and food products, this mixer ensures an even spread of materials, delivering consistent and high-quality results.

Key Features:

• Effective Mixing: The Plough Shear Mixer uses specially designed shovels that move materials around the mixing drum, ensuring uniform mixing. The shovels are engineered with wide ends and pointed tips, which allow them to penetrate and move materials effectively, providing an even spread throughout the drum.
• Versatile Applications: Ideal for a variety of industries, this mixer is capable of handling different materials, including powders, granules, and even wet substances. It is perfect for applications where consistent mixing is crucial for product quality.
• Robust Construction: Built with durability in mind, the Plough Shear Mixer is available in two models:
  • GMP Model: Fully constructed from stainless steel, ensuring the highest level of hygiene and corrosion resistance, making it ideal for pharmaceutical and food applications.
  • STD Model: Features stainless steel for product contact parts and mild steel for non-contact parts, providing a cost-effective solution without compromising on performance.

Model Specifications:

• PSM-25L:
  • Working Capacity: 20 LTRS (10/5 KGS)
  • Gear Size: V400
  • Main Motor: 3 HP at 1500 RPM / 5 HP at 750 RPM
  • Approximate Weight: 800 KG
• PSM-50L:
  • Working Capacity: 40 LTRS (20/10 KGS)
  • Gear Size: V500
  • Main Motor: 5 HP at 1500 RPM / 7.5 HP at 750 RPM
  • Approximate Weight: 1100 KG
• PSM-100L:
  • Working Capacity: 80 LTRS (40/20 KGS)
  • Gear Size: V500
  • Main Motor: 7.5 HP at 1500 RPM / 10 HP at 750 RPM
  • Approximate Weight: 1800 KG
• PSM-150L:
  • Working Capacity: 120 LTRS (60/30 KGS)
  • Gear Size: V600
  • Main Motor: 10 HP at 1500 RPM / 15 HP at 750 RPM
  • Approximate Weight: 2300 KG
• PSM-250L:
  • Working Capacity: 200 LTRS (100/50 KGS)
  • Gear Size: V700
  • Main Motor: 22.5 HP at 1500 RPM / 30 HP at 750 RPM
  • Approximate Weight: 3000 KG
• PSM-300L:
  • Working Capacity: 240 LTRS (120/60 KGS)
  • Gear Size: V700
  • Main Motor: 22.7 HP at 1500 RPM / 30 HP at 750 RPM
  • Approximate Weight: 3600 KG
• PSM-400L:
  • Working Capacity: 320 LTRS (160/80 KGS)
  • Gear Size: V800
  • Main Motor: 35 HP at 1500 RPM / 40 HP at 750 RPM
  • Approximate Weight: 3600 KG
• PSM-500L:
  • Working Capacity: 480 LTRS (240/120 KGS)
  • Gear Size: V1000
  • Main Motor: 40 HP at 1500 RPM / 50 HP at 750 RPM
  • Approximate Weight: 4700 KG
• PSM-700L:
  • Working Capacity: 560 LTRS (280/140 KGS)
  • Gear Size: V1000
  • Main Motor: 40 HP at 1500 RPM / 50 HP at 750 RPM
  • Approximate Weight: 4700 KG
• PSM-800L:
  • Working Capacity: 640 LTRS (320/160 KGS)
  • Gear Size: V1000
  • Main Motor: 50 HP at 1500 RPM / 60 HP at 750 RPM
  • Approximate Weight: 4700 KG
• PSM-1000L:
  • Working Capacity: 800 LTRS (400/200 KGS)
  • Gear Size: V1200
  • Main Motor: 63 HP at 1500 RPM / 85 HP at 750 RPM
  • Approximate Weight: 5600 KG

The Plough Shear Mixer is engineered for reliability and efficiency, making it a critical component in any production line where precise and consistent mixing is required.

The Sigma Mixer is an industrial-grade mixing machine designed for processing highly viscous and sticky materials, making it indispensable in industries such as food, rubber, pharmaceuticals, chemicals, and agro-industries. Whether you need to mix pastes, rubber, heavy plastic masses, or handle dry powder to wet phase mixing, the Sigma Mixer delivers consistent, high-quality results.

Key Features:

• Efficient Mixing: The Sigma Mixer is equipped with two robust Z-shaped blades that rotate in opposite directions at different speeds. This tangential action creates a powerful kneading effect, ensuring thorough mixing and kneading of even the most challenging materials.
• Versatile Applications: Ideal for a variety of applications, including mixing highly viscous masses, sticky doughs, pastes, rubber, and other heavy plastic materials. It is widely used in industries such as food processing, pharmaceuticals, rubber manufacturing, chemical production, and agriculture.
• Durable Construction: The Sigma Mixer is available in two models:
  • GMP Model: Constructed entirely from stainless steel, this model is designed for industries requiring the highest levels of hygiene and corrosion resistance, such as food and pharmaceuticals.
  • STD Model: Features stainless steel for all product contact parts, while non-contact parts are made of mild steel and painted, offering a cost-effective yet durable solution.

Model Specifications:

• SM-25L:
  • Working Capacity: 12 LTRS (10 KGS)
  • Motor: 3 HP
  • Approximate Weight: 800 KG
• SM-50L:
  • Working Capacity: 25 LTRS (15 KGS)
  • Motor: 5 HP
  • Approximate Weight: 1100 KG
• SM-100L:
  • Working Capacity: 60 LTRS (30 KGS)
  • Motor: 7.5 HP
  • Approximate Weight: 1800 KG
• SM-150L:
  • Working Capacity: 100 LTRS (40 KGS)
  • Motor: 10 HP
  • Approximate Weight: 2300 KG
• SM-250L:
  • Working Capacity: 150 LTRS (100 KGS)
  • Motor: 20 HP
  • Approximate Weight: 3000 KG
• SM-300L:
  • Working Capacity: 175 LTRS (125 KGS)
  • Motor: 25 HP
  • Approximate Weight: 3600 KG

The Sigma Mixer is engineered to provide powerful and efficient mixing for even the most challenging materials. Its robust construction, combined with versatile applications, makes it an essential tool for any industrial setting.

The Double Cone Blender is an essential piece of equipment designed for the homogeneous mixing of dry powders and granules. Its unique conical shape and slant design ensure effective mixing while preventing dead zones, making it ideal for industries such as pharmaceuticals, food processing, and chemicals.

Key Features and Applications:

• Use: The Double Cone Blender is engineered to mix dry powders and granules evenly, ensuring a consistent final product. This makes it a critical tool for industries requiring precision in mixing processes.
• Application: This blender is specifically used for powder mixing across various industries, including pharmaceuticals, chemicals, food, and cosmetics.
• Principle: The Double Cone Blender operates on a simple yet effective principle. The conical shape of the blender, combined with its slant design, minimizes dead spots and facilitates easy discharge of the blended material. The axis of the blender is slightly offset from the center of the mixing container. As the container rotates, the contents spread, flow, and change positions. This tumbling motion, enhanced by the long corners of the container, creates a rubbing and tumbling effect that ensures quick and uniform mixing of the materials. The mixing vessel is constructed from two conical pieces welded together, with one end for material feeding and the other for material discharge, ensuring efficient and thorough blending.

Material of Construction:

• GMP Model: Crafted entirely from stainless steel, this model is designed for maximum durability, hygiene, and compliance with industry standards.
• STD Model: Features stainless steel product contact parts, while the non-contact parts are made of painted mild steel, offering a cost-effective yet efficient solution.

Model Specifications:

• DCB 25: Gross Capacity: 25 LTRS, Working Capacity: 15 LTRS, HP/RPM: 0.5 HP/36 RPM.
• DCB 50: Gross Capacity: 50 LTRS, Working Capacity: 30 LTRS, HP/RPM: 1 HP/24 RPM.
• DCB 100: Gross Capacity: 100 LTRS, Working Capacity: 60 LTRS, HP/RPM: 2 HP/18 RPM.
• DCB 200: Gross Capacity: 200 LTRS, Working Capacity: 135 LTRS, HP/RPM: 3 HP/16 RPM.
• DCB 300: Gross Capacity: 300 LTRS, Working Capacity: 200 LTRS, HP/RPM: 3 HP/16 RPM.
• DCB 500: Gross Capacity: 500 LTRS, Working Capacity: 300 LTRS, HP/RPM: 5 HP/16 RPM.
• DCB 1000: Gross Capacity: 1000 LTRS, Working Capacity: 700 LTRS, HP/RPM: 10 HP/12 RPM.
• DCB 2000: Gross Capacity: 2000 LTRS, Working Capacity: 1300 LTRS, HP/RPM: 15 HP/10 RPM.

The Double Cone Blender is designed for ease of operation, reliability, and efficiency in mixing, making it an indispensable tool for your production line.

The V Blender is a versatile blending machine designed to uniformly mix various materials, such as powders, granules, and supplements. Its V-shaped design ensures thorough blending, making it essential in industries like pharmaceuticals, food processing, and cosmetics.

Key Features:

• Quick and Efficient Mixing: The V Blender uses a diffusion mechanism to mix materials rapidly and consistently. This ensures a uniform blend across batches, which is critical in maintaining product quality.
• Wide Range of Applications: This machine is ideal for mixing powders, granules, supplements, chemicals, food products, and cosmetics. Its versatility makes it a valuable asset in various industries.
• Efficient Mixing Process: The V Blender consists of two cylinders attached to form a ‘V.’ As the shell rotates, the powder materials inside move back and forth, continuously mixing and ensuring even distribution.

Material of Construction:

• GMP Model: Constructed entirely from stainless steel, this model meets the highest industry standards for hygiene and durability, making it perfect for pharmaceutical and food processing industries.
• STD Model: Features stainless steel product contact parts and non-contact parts made from painted mild steel, offering an economical yet effective solution for general industrial use.

Model Specifications:

• VB 25: Gross Capacity: 25 LTRS, Working Capacity: 12 LTRS, Power: 0.5 HP, Speed: 36 RPM.
• VB 50: Gross Capacity: 50 LTRS, Working Capacity: 25 LTRS, Power: 1 HP, Speed: 24 RPM.
• VB 100: Gross Capacity: 100 LTRS, Working Capacity: 50 LTRS, Power: 2 HP, Speed: 18 RPM.
• VB 200: Gross Capacity: 200 LTRS, Working Capacity: 100 LTRS, Power: 3 HP, Speed: 16 RPM.
• VB 300: Gross Capacity: 300 LTRS, Working Capacity: 150 LTRS, Power: 3 HP, Speed: 16 RPM.
• VB 500: Gross Capacity: 500 LTRS, Working Capacity: 250 LTRS, Power: 5 HP, Speed: 16 RPM.
• VB 1000: Gross Capacity: 1000 LTRS, Working Capacity: 500 LTRS, Power: 10 HP, Speed: 12 RPM.
• VB 2000: Gross Capacity: 2000 LTRS, Working Capacity: 1000 LTRS, Power: 15 HP, Speed: 10 RPM.

The V Blender is designed for easy operation and consistent performance. It is an indispensable tool for any production line.

Use – Fluid bed dryers are used for drying materials such as granules, tablets, powders, fertilizers, and plastics. They are particularly popular in production industries like Chemical. Pharmaceutical.

Application – granules, tablets, powders, fertilizers, and plastics

Principle – Here is an explanation of the fundamental idea that drives fluid bed dryer operation. An upward flow of air is permitted through a bed of solid powdered material. This resulted in a velocity that is greater than the total particle setting rate. All of the solid particles will be blasted up and suspended in an air stream when this occurs.

Thus, the solid bed is transformed into the fluidized condition, which is a boiling liquid. The process of fluidizing the bed can then be aided by the use of hot air. This quickens the process of the material drying.

This device comprises of a stainless steel bowl-shaped chamber with a detachable perforated bottom. You must put everything that has to be dried in this basin. The heaters heat the air to a certain temperature once it is introduced from the bottom of a bowl.

The material bed is passed through after the air has been purified with the aid of a filter. The equipment’s top-mounted fans are what create the continual airflow. A control panel is used to alter every aspect of the machine, including the operating temperature and flow rate.

The rapid drying of the material makes this machine famous for its high drying rate. It is always permitted for the materials to be in a free-flowing state. The bags employed in this case have a finger-like shape that helps expand the drying bed’s surface area. During the fluid bed drying process, this kind of design aids in accelerating drying and cutting down on drying time.

Material Of Construction –

• GMP. Model (Full Stainless Steel),
• STD. Model (Product Contact Parts Stainless Steel & Non Contact Parts Mild Steel Painted)

The Rapid Mixer Granulator (RMG) is an essential piece of equipment for industries requiring efficient wet mixing, dry blending, dough preparation, and granulation processes. Engineered for precision, the RMG ensures uniform granule formation through its innovative design and powerful operation.

Key Features and Applications:

• Use: The RMG is versatile, used for applications involving wet mixing, dry blending, and the preparation of dough and granulation, making it indispensable in pharmaceutical, food, and chemical manufacturing.
• Application: This machine is ideal for achieving uniform mixing and granulation in the production of tablets, pellets, and other granular materials.
• Principle: The RMG operates by utilizing a bottom entry agitator and side-mounted chopper to granulate materials. The machine agitates the bowl’s contents at a controlled speed and then uses a high-speed cutter blade to process the wet mass. The RMG’s tumbling motion ensures even distribution of dry components and uniform wetting of each granule. Granules are formed through the combined rising, whirling, and tumbling motions of the material.

Material of Construction:

• GMP Model: Fully constructed from stainless steel, providing excellent durability and compliance with industry standards.
• STD Model: Features stainless steel product contact parts with non-contact parts made of painted mild steel, offering a cost-effective solution without compromising quality.

Model Specifications:

• RMG-50: Gross Capacity: 50 Liters, Working Capacity: 40 Liters, Loading Capacity: 20 Kg, Mixing Impeller Motor: 5/7.5 HP-Dual, Mixing Impeller Speed: 1440 RPM, Chopper Motor: 2 HP-Dual, Chopper Speed: 2800 RPM.
• RMG-100: Gross Capacity: 100 Liters, Working Capacity: 80 Liters, Loading Capacity: 40 Kg, Mixing Impeller Motor: 10/12.5 HP-Dual, Mixing Impeller Speed: 750/1440 RPM, Chopper Motor: 2/3 HP-Dual, Chopper Speed: 2800 RPM.
• RMG-150: Gross Capacity: 150 Liters, Working Capacity: 120 Liters, Loading Capacity: 60 Kg, Mixing Impeller Motor: 15 HP, Mixing Impeller Speed: 1440 RPM, Chopper Motor: 5 HP, Chopper Speed: 2800 RPM.
• RMG-300: Gross Capacity: 300 Liters, Working Capacity: 240 Liters, Loading Capacity: 120 Kg, Mixing Impeller Motor: 30 HP, Mixing Impeller Speed: 1440 RPM, Chopper Motor: 5 HP, Chopper Speed: 2800 RPM.
• RMG-400: Gross Capacity: 400 Liters, Working Capacity: 320 Liters, Loading Capacity: 160 Kg, Mixing Impeller Motor: 40 HP, Mixing Impeller Speed: 1440 RPM, Chopper Motor: 5 HP, Chopper Speed: 2800 RPM.
• RMG-600: Gross Capacity: 600 Liters, Working Capacity: 500 Liters, Loading Capacity: 250 Kg, Mixing Impeller Motor: 50 HP, Mixing Impeller Speed: 1440 RPM, Chopper Motor: 7.5 HP, Chopper Speed: 2800 RPM.

This RMG is designed to meet the highest standards of performance and reliability.

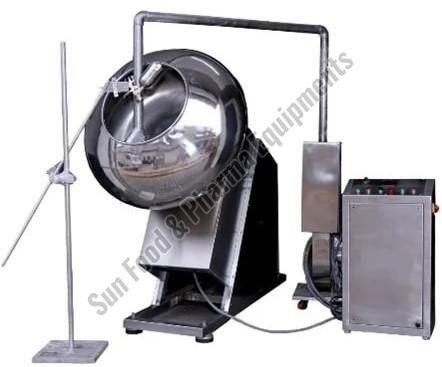

The Coating Pan or Flavoring Machine is an essential tool for industries such as pharmaceuticals, confectionery, and food processing. Designed to perform both coating and flavoring tasks, this machine ensures efficient and uniform application of coatings on various products, including tablets, pills, edible nuts, and seeds.

Key Features and Applications:

• Use: Ideal for sugar coating tablets and pills, and for coating or flavoring beans, nuts, and seeds.
• Application: This machine is widely used across pharmaceutical, confectionery, and food industries for coating or flavoring products.
• Process: The product is placed inside the rotating pan. The coating material is applied through a spraying system during the rotation, ensuring even coating. The pan’s variable speed rotation, combined with a hot air blower system, facilitates rapid drying, forming a smooth and solid surface.

Material of Construction:

• GMP Model: Fully constructed from stainless steel, ensuring durability and compliance with stringent industrial standards.
• STD Model: Features stainless steel for product contact parts and mild steel painted non-contact parts, offering a balance between cost and performance.
• M.S. Model: Fully constructed from mild steel, providing a cost-effective solution for less demanding applications.

Models and Capacities:

• SFFE-12: 12-inch pan, 5 to 8 kg loading capacity, 0.5 HP motor.
• SFFE-24: 24-inch pan, 10 to 15 kg loading capacity, 1 HP motor.
• SFFE-30: 30-inch pan, 40 to 45 kg loading capacity, 1.5 HP motor.
• SFFE-36: 36-inch pan, 60 to 80 kg loading capacity, 2 HP motor.
• SFFE-42: 42-inch pan, 90 to 100 kg loading capacity, 3 HP motor.
• SFFE-48: 48-inch pan, 110 to 120 kg loading capacity, 5 HP motor.
• SFFE-60: 60-inch pan, 150 to 210 kg loading capacity, 5 HP motor.
• SFFE-72: 72-inch pan, 210 to 250 kg loading capacity, 5 HP motor.

Additional Details:

• Pan Angle: 30° for all models.
• Pan RPM: Varies from 20 to 60 RPM depending on the model.
• Blower Capacity: Ranges from 100 to 300 CFM.
• Heater Capacity: Ranges from 2 KW to 6 KW, ensuring optimal drying.

This machine is an excellent choice for businesses seeking efficiency and precision in their coating and flavoring processes. For pricing details and to receive a custom quote, please click on the “Get Quote” button. Additionally, please review our Terms and Conditions of Sale before making your purchase.

The Multi-Mill is a high-efficiency portable unit designed to reduce the particle size of dry materials through variable force swings, beaters with knife and impact edges. This versatile machine is ideal for industries such as pharmaceuticals, chemicals, cosmetics, ceramics, dyestuffs, and food products, where precise particle size control is crucial for product quality.

Key Features:

• Efficient Particle Reduction: The Multi-Mill employs variable force swing beaters with both knife and impact edges to achieve efficient particle size reduction. The materials are processed through a selected screen, which controls the final particle size, ensuring consistency and quality.
• Wide Range of Applications: This machine is widely used in various industries including pharmaceuticals, chemicals, cosmetics, ceramics, and food processing, making it a valuable asset for any production line.
• Portable and Flexible: Designed for easy movement and flexibility, the Multi-Mill can be easily integrated into different stages of production. It is suitable for a range of materials and processing conditions.

Material of Construction:

• GMP Model: Constructed entirely from stainless steel, this model ensures the highest standards of hygiene and durability, ideal for pharmaceutical and food industries.
• STD Model: Features stainless steel for product contact parts and painted mild steel for non-contact parts, offering an economical option without compromising on performance.

Model Specifications:

• 1 HP Multi-Mill:
  • Output: 5 to 50 kg/hr
  • Screen Size: 150 ID x 95 HT mm
  • Charging Height: 1070 mm
  • Discharging Height: 500 mm
  • Motor: 1 HP / 0.75 KW
• 2 HP Multi-Mill (Standard):
  • Output: 25 to 200 kg/hr
  • Screen Size: 260 ID x 140 HT mm
  • Charging Height: 1550 mm
  • Discharging Height: 750 mm
  • Motor: 3 HP / 2.2 KW
• 2 HP Multi-Mill (High Output):
  • Output: 50 to 500 kg/hr
  • Screen Size: 300 ID x 160 HT mm
  • Charging Height: 1600 mm
  • Discharging Height: 800 mm
  • Motor: 5 HP / 3.7 KW

The Multi-Mill’s robust design and precise engineering make it indispensable for achieving consistent particle sizes in various industrial applications.

The Vibro Sifter is a versatile and essential tool for industries that require precise separation of materials based on particle size and shape. Utilizing advanced gyratory motion technology, this machine ensures that powders and other granular materials are efficiently sifted, leading to superior product quality and consistency.

Key Features and Applications:

• Use: The Vibro Sifter employs a gyratory motion mechanism, which leverages the rotational tendency of an object to maintain its orientation, effectively separating materials by particle size and shape.
• Application: Ideal for the separation of powders, this machine finds widespread use in industries such as pharmaceuticals, chemicals, food processing, and cosmetics.
• Principle: The Vibro Sifter operates using a sophisticated dual-weight system. The top eccentric weight on the motor shaft generates vibration in the horizontal plane, propelling materials across the screen cloth towards the periphery, which accelerates the discharge of oversize particles. Meanwhile, the bottom eccentric weight, positioned below the center of mass, introduces tilt and vibration in the vertical and tangential planes. This dual-motion system enhances the turnover of materials on the screen surface, allowing for maximum passage of undersized materials through the screen. The rugged springs located at the motor base further amplify the vibration, ensuring efficient sifting and separation.

Material of Construction:

• GMP Model: Fully constructed from stainless steel, ensuring durability, corrosion resistance, and compliance with industry standards.
• STD Model: Features stainless steel product contact parts with non-contact parts made of painted mild steel, providing a cost-effective solution while maintaining high performance.

Model Specifications:

• 12 INCH: Drive Motor: 0.25 HP, Screen Diameter: 305 MM, Output: 60 KGS/HR.
• 24 INCH: Drive Motor: 0.5 HP, Screen Diameter: 610 MM, Output: 100 KG/HR.
• 30 INCH: Drive Motor: 0.75 HP, Screen Diameter: 760 MM, Output: 120 KG/HR.
• 36 INCH: Drive Motor: 1 HP, Screen Diameter: 915 MM, Output: 220 KG/HR.
• 48 INCH: Drive Motor: 2 HP, Screen Diameter: 1220 MM, Output: 280 KG/HR.
• 60 INCH: Drive Motor: 3 HP, Screen Diameter: 1525 MM, Output: 400 KG/HR.
• 72 INCH: Drive Motor: 5 HP, Screen Diameter: 1830 MM, Output: 600 KG/HR.

Designed for ease of use, reliability, and high throughput, the Vibro Sifter is a must-have for any industry requiring precision particle separation.
